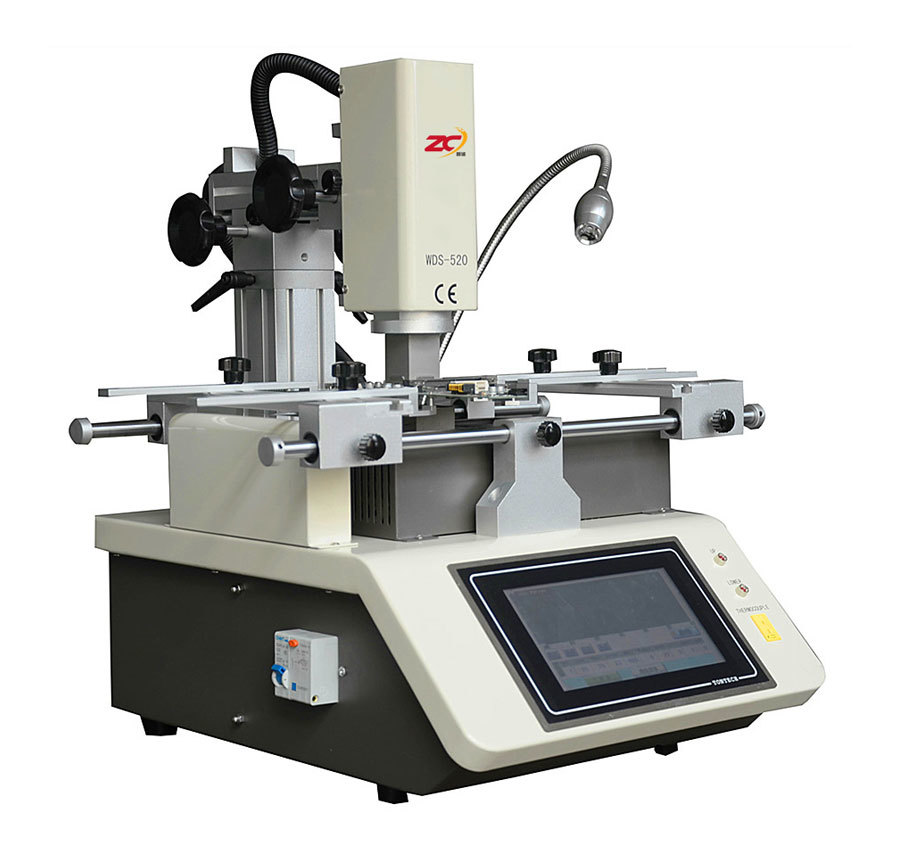

WDS-520

The machine adopts high-definition industrial touch screen. The temperature reflects the data to the touch screen in the form of curve during operation, and has functions of curve analysis and curve modification;

隐藏域元素占位

Classification:

Mobile phone dedicated BGA rework station

Keywords:

DESCRIPTION
technical parameter

Features of WDS-520 rework station:

The machine adopts high-definition industrial touch screen. The temperature reflects the data to the touch screen in the form of curve during operation, and has functions of curve analysis and curve modification;

It can store hundreds of user temperature curve data.

Independent heating control in the three temperature zones, hot air heating in the upper and lower temperature zones, lower hot air temperature zone can be adjusted up and down, infrared heating in the bottom temperature zone, the temperature is accurately controlled at ± 2 degrees, and the upper temperature zone can move up, down, left, and right. The upper and lower heating zones can be set with up to nine temperature controls at the same time. The IR preheating zone can adjust the output power according to actual requirements .;

The heating nozzle can rotate 360 °, which is easier to meet the position of different chips; the machine uses high-precision K-type thermocouple closed-loop control, and an external temperature measurement interface realizes precise temperature detection;

Built-in vacuum suction pen, lighting lamp, cross-flow fan, laser lamp and other auxiliary functions; the machine has advanced alarm function, intelligent air volume adjustment software, which is more stable and convenient than traditional adjustment knob control;

This machine has passed CE certification, and it has automatic power-off protection device for abnormal accidents. In the event of temperature runaway, the circuit can automatically power off, with double over-temperature protection function;

Technical parameters of WDS-520 rework station:

power supply	Ac220v±10%,50/60hz
Total power	3800W
Heater power	Upper hot air heating, maximum 800W
	Lower hot air heating, maximum 1200W
	Infrared preheating at the bottom, maximum 1800w
pcb positioning method	V-shaped card slot + universal fixture
Temperature control method	High-precision K-type thermocouple closed-loop control, independent temperature measurement from top to bottom, temperature accuracy up to plus or minus 2 degrees;
Selection of electrical appliances	Highly sensitive touch screen + temperature control module + microcontrollers
Applicable PCB size	Max300 × 280mm Min 10 × 10 mm
Applicable chip size	Max60 × 60mm Min 1 × 1 mm
Applicable pcb thickness	0.3-5mm
Temperature measurement interface	1
Dimensions	L460 × W480 × H500mm
Machine weight	About 20kg
