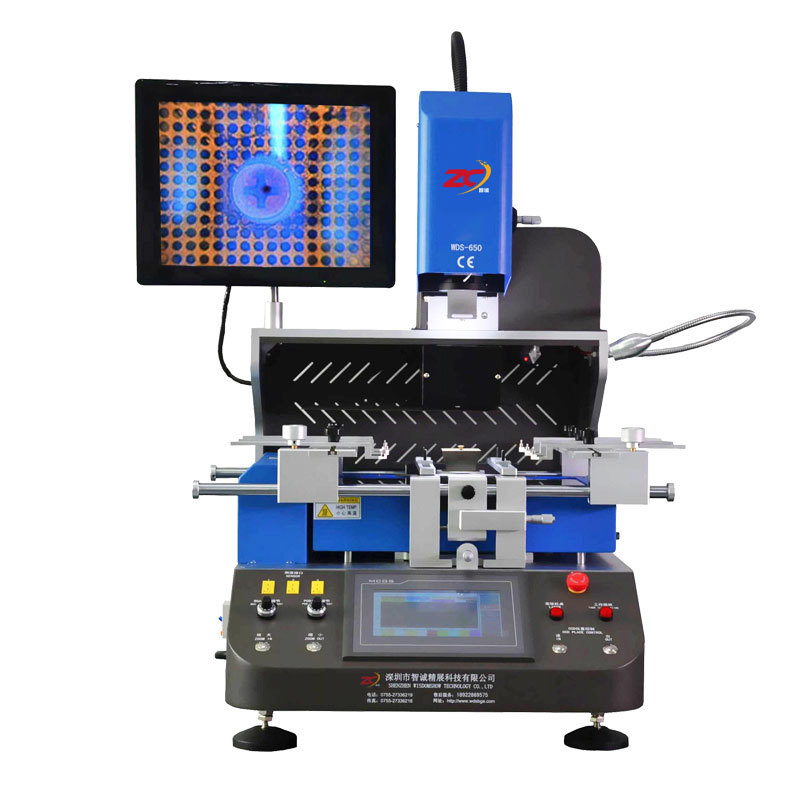

WDS-650

The upper and lower temperature zones are heated by hot air. The IR preheating zone is heated by imported infrared gold-plated light tubes. The temperature rises quickly and the temperature is accurately controlled at ± 1 ℃. 8-stage temperature control can make the PCB board heat evenly, preheat the bottom of the large IR, make the entire PCB temperature even, prevent deformation, ensure the welding effect, and the infrared gold-plated light tube can independently control the heating.

隐藏域元素占位

Classification:

Optical automation BGA rework station

Keywords:

DESCRIPTION
technical parameter

Features of WDS-650 rework station:

Independent three temperature zone temperature control system:

The upper and lower temperature zones are heated by hot air. The IR preheating zone is heated by imported infrared gold-plated light tubes. The temperature rises quickly and the temperature is accurately controlled at ± 1 ℃. 8-stage temperature control can make the PCB board heat evenly, preheat the bottom of the large IR, make the entire PCB temperature even, prevent deformation, ensure the welding effect, and the infrared gold-plated light tube can independently control the heating.

The upper and lower hot air heating can locally heat the BGA chip and the PCB board at the same time, and then supplement the large area infrared heater to preheat the bottom of the PCB board, which can completely avoid the deformation of the PCB board during the repair process; by selecting Use the upper temperature zone or the lower temperature zone alone, and freely combine the energy of the upper and lower heating elements.

Select high-precision K-type thermocouple closed-loop control and PID parameter self-tuning system; can display four temperature curves and store multiple sets of user data at the same time, and have instant curve analysis function; external temperature measurement interface realizes precise temperature detection and can be used at any time Analyze and proofread the temperature curve of the actual collected BGA. And can carry out curve analysis, setting and correction of temperature parameters at any time on the touch screen;

Precise optical alignment system: Adopt high-definition digital camera color optical vision alignment system, with functions of splitting, magnifying, reducing, and auto-focusing, and equipped with automatic color difference resolution and brightness adjustment device, which can adjust imaging sharpness; with 15 ″ HD LCD display.

Multifunctional and humanized operating system

Adopt high-definition touch screen man-machine interface, integrated design of upper heating device and placement head, equipped with a variety of titanium alloy BGA nozzles, which can be rotated 360 ° at any time, easy to install and replace.

The X, Y axis and R angles are fine-adjusted with a micrometer, and the alignment is accurate with an accuracy of ± 0.01mm.

Superior safety protection function: It has an alarm function after welding or de-soldering is completed. In the case of temperature runaway, the circuit can be automatically powered off and has double over-temperature protection function. The temperature parameters are protected by password to prevent arbitrary modification and other safety protection and foolproof functions.

WDS-650 product specifications and technical parameters:

power supply	Ac220v±10%,50/60hz
Total power	5200W
Heater power	Upper hot air heating, maximum 1200W
	Lower hot air heating, maximum 1200W
	Infrared preheating at the bottom, maximum 4000w
pcb positioning method	V-shaped card slot + universal fixture + laser positioning lamp for fast positioning.
Temperature control method	High-precision K-type thermocouple closed-loop control, independent temperature measurement from top to bottom, temperature accuracy up to plus or minus 1 degree;
Selection of electrical appliances	Highly sensitive touch screen + temperature control module + microcontrollers + stepper driver
Applicable PCB size	Max410 × 380mm Min 10 × 10 mm
Applicable chip size	Max70 × 70mm Min 1 × 1 mm
Applicable pcb thickness	0.3-5mm
Alignment system	Optical diamond mirror + high-definition industrial camera,
Mounting accuracy	±0.01mm
Temperature measurement interface	3
Mounting maximum load	150G
Tin point monitoring	Optional external camera can be used to monitor the solder ball melting process during welding
Camera in and out	Optical lens electric in and out;
Dimensions	L600 × W640 × H850mm
Machine weight	About 60kg
Other features	Five working modes, free switching between automatic / manual mode,
